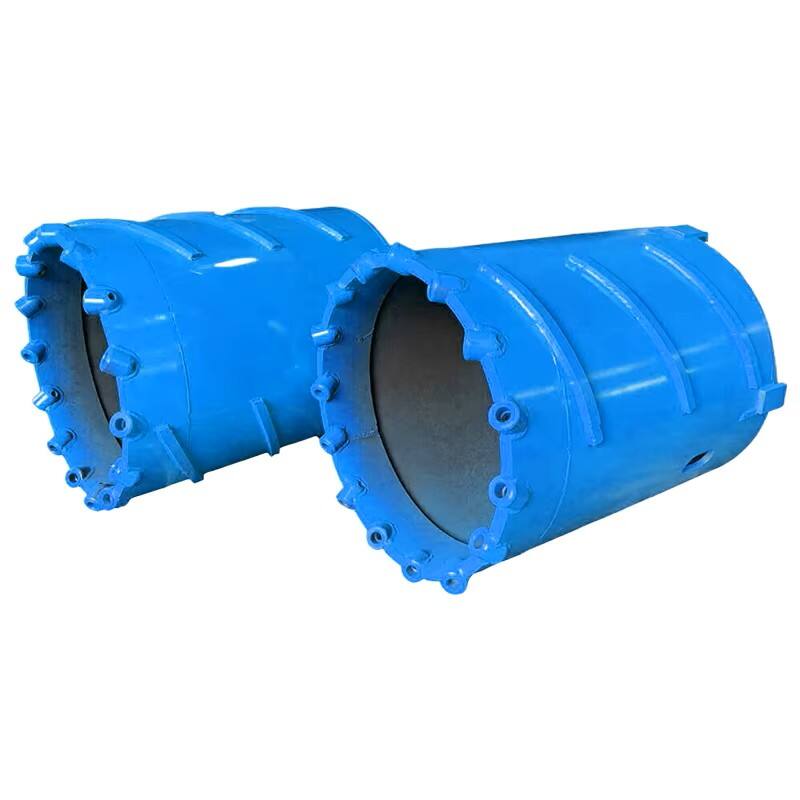

Core Barrels

Durable core barrels with triple-wear strips, high-density Q355D plates, and reinforced coiled steel. Fully customizable OEM service.

we use the high-manganese D plate from Anyang, Henan,China(the best quailty). This kind of plate has a high density, making it most suitable for manufacturing drill bits.The drill bit plates we use are all made of national standard manganese steel Q355D plates. These plates have a high density, few impurities, and a long service life.
The bottom bucket teeth have different directions(inward,middle,outward) ,three directions in a group, The rest are all arranged according to this group. the specific quantity of the bucket teeth are different according to the different diameter of the bucket.

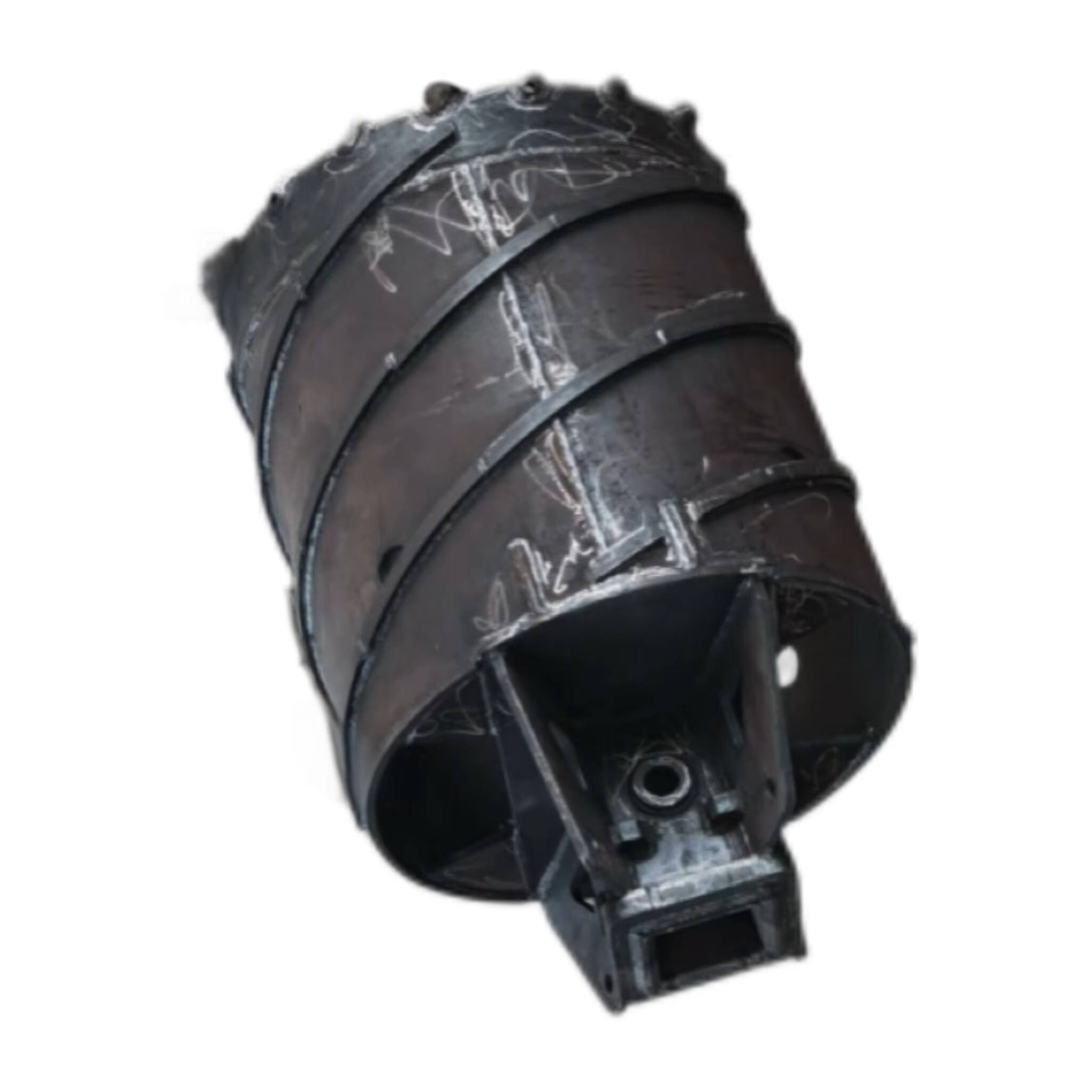

The cylinder is reinforced with coiled steel bars wrapped tightly around its outer surface, enhancing its structural strength.
We can produce the thickness and height according to your specific demand. Also can increase or decrease the quantity of the teeth . The factory offer OEM service.
The cylinder is equipped with wear-resistant strips forged from special materials of our factory, printed with the logo of Dazheng Yongye. Its wear resistance is three times higher than that of ordinary wear-resistant strips

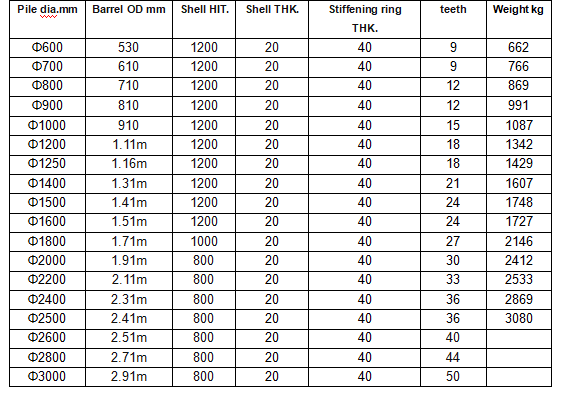

Pile dia. mm	Barrel OD mm	Shell HT.	Shell THK.	Stiffening ring THK.	Teeth	Weight (kg)
Φ600	530	1200	20	40	9	662
Φ700	610	1200	20	40	9	766
Φ800	710	1200	20	40	12	869
Φ900	810	1200	20	40	12	991
Φ1000	910	1200	20	40	15	1087
Φ1200	1.11m	1200	20	40	18	1342
Φ1250	1.16m	1200	20	40	18	1429
Φ1400	1.31m	1200	20	40	21	1607
Φ1500	1.41m	1200	20	40	24	1748
Φ1600	1.51m	1200	20	40	24	1727
Φ1800	1.71m	1000	20	40	27	2146
Φ2000	1.91m	800	20	40	30	2412
Φ2200	2.11m	800	20	40	33	2533
Φ2400	2.31m	800	20	40	36	2869
Φ2500	2.41m	800	20	40	36	3080
Φ2600	2.51m	800	20	40	40	—
Φ2800	2.71m	800	20	40	44	—
Φ3000	2.91m	800	20	40	50	—
