Product Description

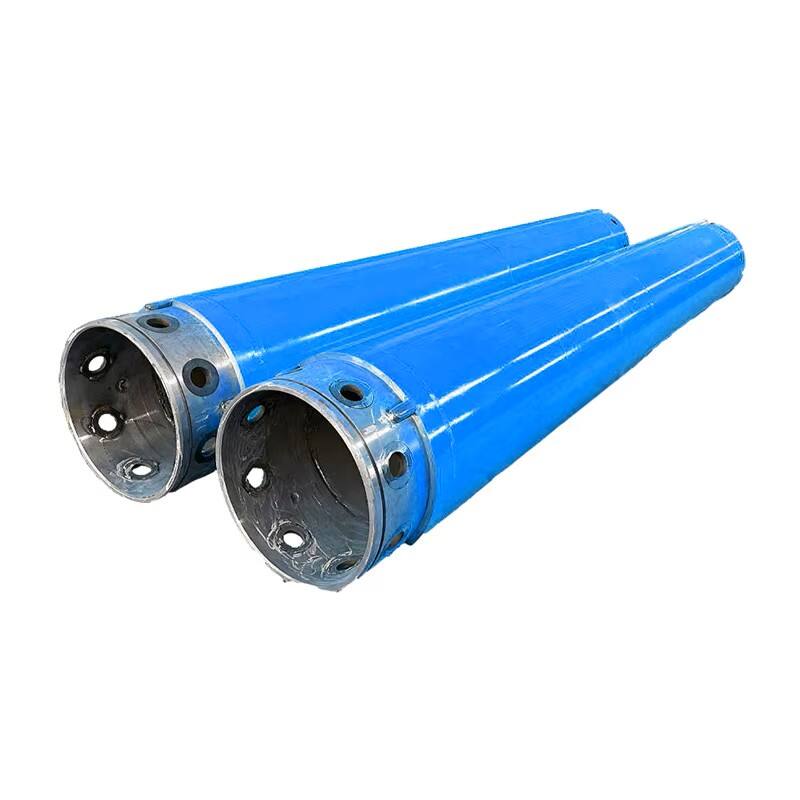

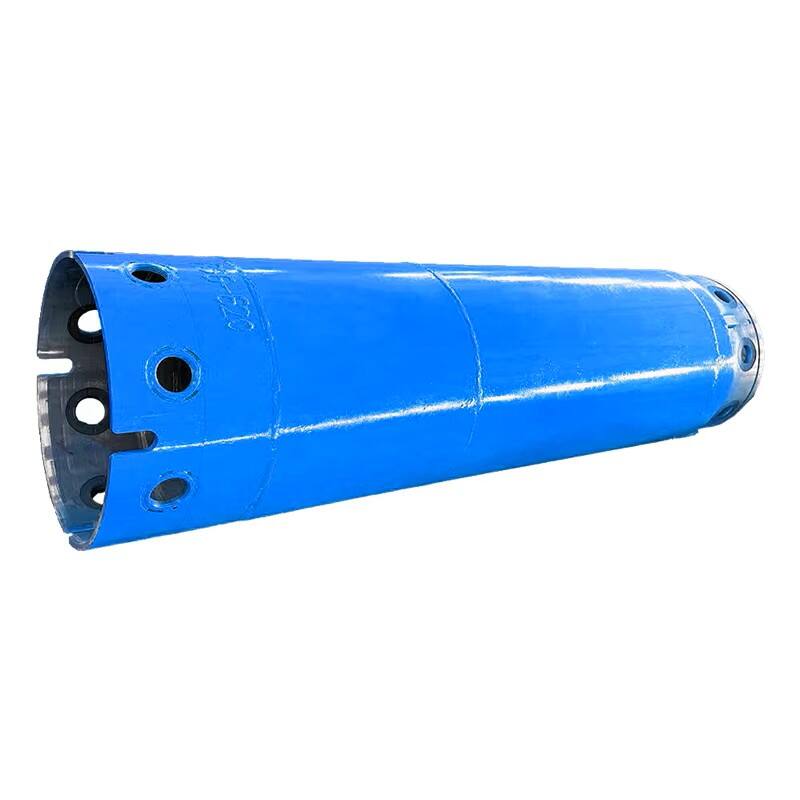

The casing sections can be divided into single lengths of 2 meters, 3 meters, and 4 meters. Due to the hard alloy cutting teeth equipped on the casing, it is suitable for various soil types, especially exhibiting excellent performance when encountering complex geological conditions such as rock layers, gravel layers, and interlayers, making it very versatile. During construction on soft soil foundations, there is no risk of collapse after the casing is pre-pressed, thus no protective measures are required. The casing is connected with a buckled male-female joint, and the number of joints varies according to the diameter of the casing. This connection method conforms to international standards, ensuring its compatibility in both domestic and international markets.
Product Advantage
The advantages of the casing pipe:the U-shaped Joint Design was heat-treatment ,and ensure the casing stability,no deformation occurs.
Product Parameters
|
Diameter |
length |
Casing joint thicknes |
Casing shoe teeth No. |
||||||
|
D1/D2 |
1m |
2m |
2.5m |
3m |
2m casing shoe |
3m casing shoe |
4m casing shoe |
T1 |
|
|
(mm) |
thickness(mm) |
(mm) |
(piece) |
||||||
|
700/620 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
8 |
|
780/700 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
10 |
|
800/720 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
10 |
|
880/800 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
10 |
|
900/820 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
10 |
|
980/900 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1000/920 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1080/1000 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1100/1020 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1180/1100 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1200/1120 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
12 |
|
1280/1200 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
14 |
|
1300/1220 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
14 |
|
1380/1300 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
14 |
|
1400/1320 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
14 |
|
1480/1400 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1500/1420 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1580/1500 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1600/1520 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1680/1600 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1700/1620 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
40 |
16 |
|
1800/1700 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
18 |
|
1820/1720 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
18 |
|
1900/1800 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
18 |
|
1920/1820 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
18 |
|
2000/1900 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
20 |
|
2020/1920 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
20 |
|
2100/2000 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
20 |
|
2120/2020 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
50 |
20 |
