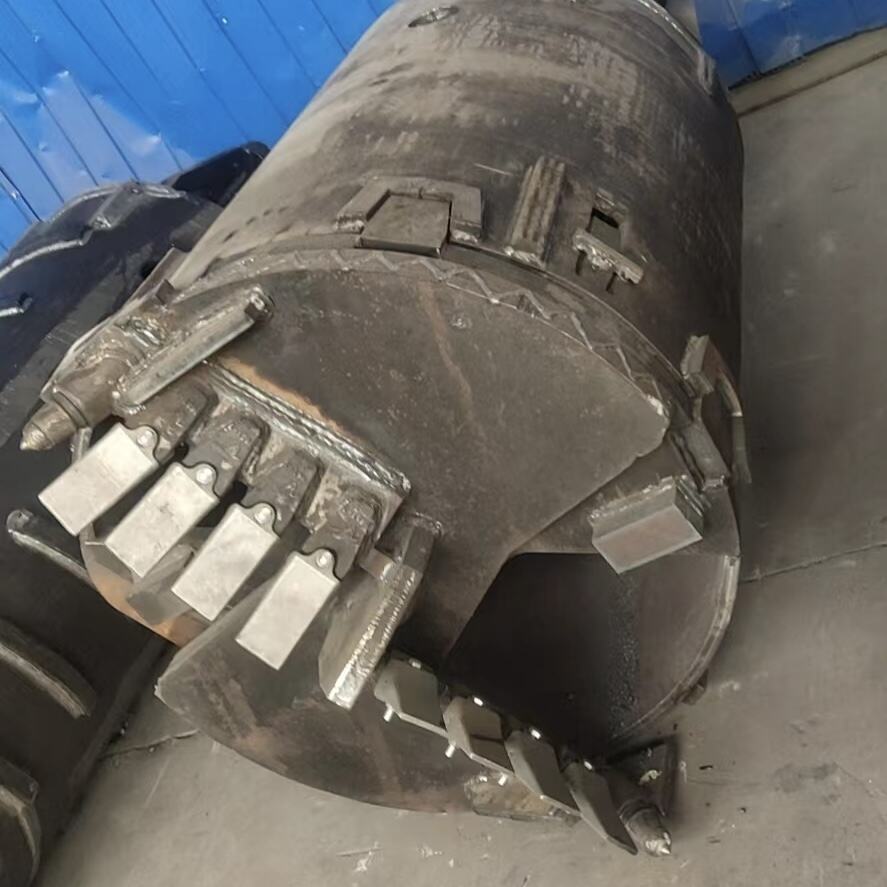

Versatile soil bucket for varied strata. Custom tooth angles, single/double bottom inlets for efficient drilling.
The drill bucket is mainly used for drilling holes in water-bearing sandy soil, silt, clay, gravel, pebbles and weathered soft strata.
The welding Angle of the bucket teeth can be designed according to the stratum conditions to enable the drill bucket to drill soil efficiently.

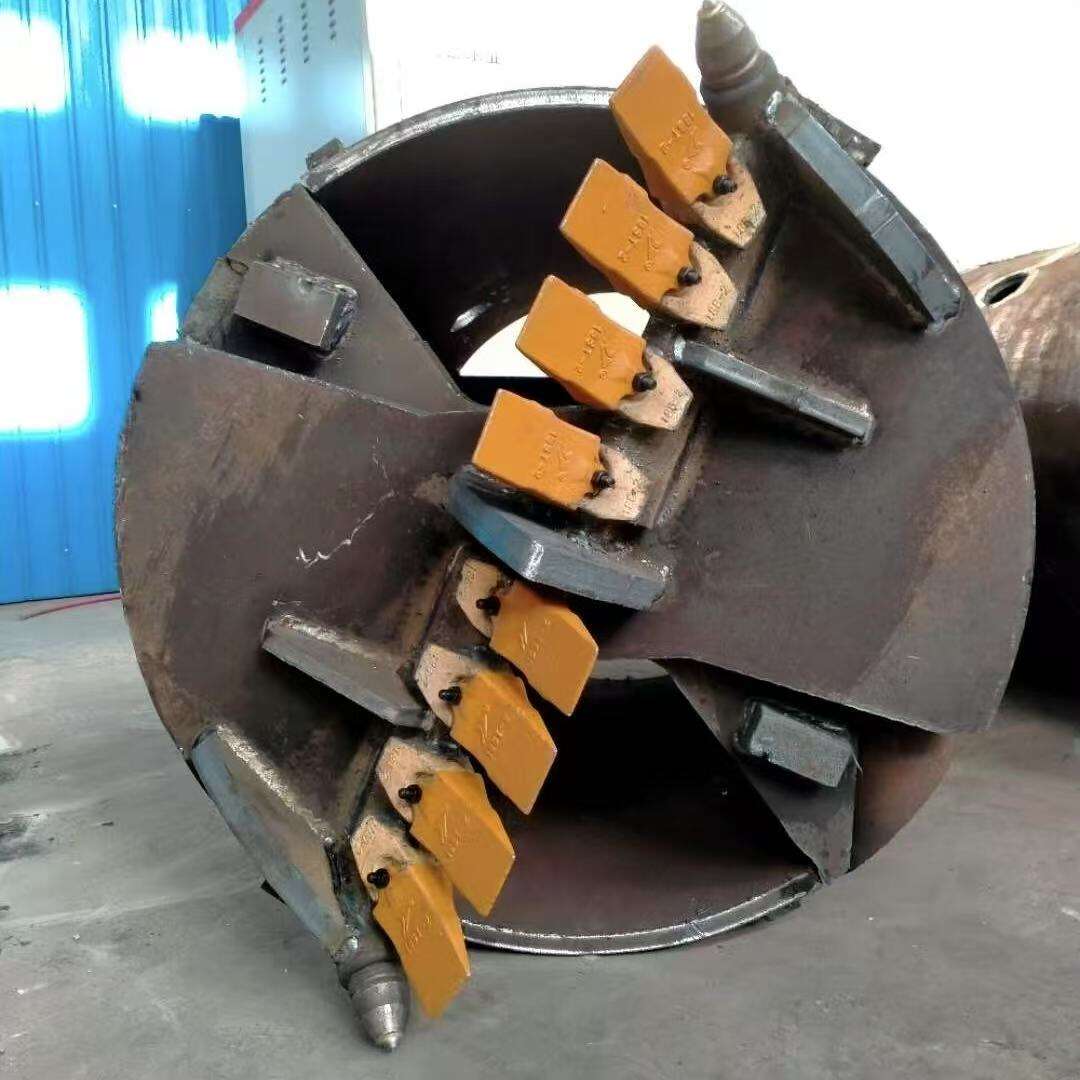

There are single-bottom and double-bottom types of soil inlets.
|
Model |
Height |
Thickness of Cylinder |
Thickness of inner bottom plate |
Thickness of lower bottom plate |
Teeth No. |
|
Φ600 |
1200 |
16 |
40 |
40 |
4 |
|
Φ700 |
1200 |
16 |
40 |
40 |
4 |
|
Φ800 |
1200 |
20 |
40 |
50 |
6 |
|
Φ900 |
1200 |
20 |
40 |
50 |
7 |
|
Φ1000 |
1200 |
20 |
40 |
50 |
8 |
|
Φ1200 |
1200 |
20 |
40 |
50 |
10 |
|
Φ1250 |
1200 |
20 |
40 |
50 |
10 |
|
Φ1400 |
1200 |
20 |
40 |
50 |
12 |
|
Φ1500 |
1200 |
20 |
40 |
50 |
13 |
|
Φ1600 |
1200 |
20 |
40 |
50 |
13 |
|
Φ1800 |
1000 |
20 |
40 |
50 |
15 |
|
Φ2000 |
800 |
20 |
40 |
50 |
18 |
|
Φ2200 |
800 |
20 |
40 |
50 |
20 |
|
Φ2500 |
800 |
20 |
40 |
50 |
22 |
|
Remark:the length is in millimeter |
|||||
|
Advantages:
|
|||||
We supply drilling buckets, core barrels, drilling teeth, cone bits, casing systems, kelly bars, and tremie pipes for rotary drilling projects.
Selection depends on soil/rock type, hole diameter, and drilling depth. Our team can help you choose the right model.
Yes. Size, teeth type, shell height, and connection can be customized to match your drilling rig.
Yes. We offer casing tubes, casing shoes, adaptors, and related accessories as a complete system.
Send us your required product, specifications, rig model, and quantity via the inquiry form for a fast quote.
