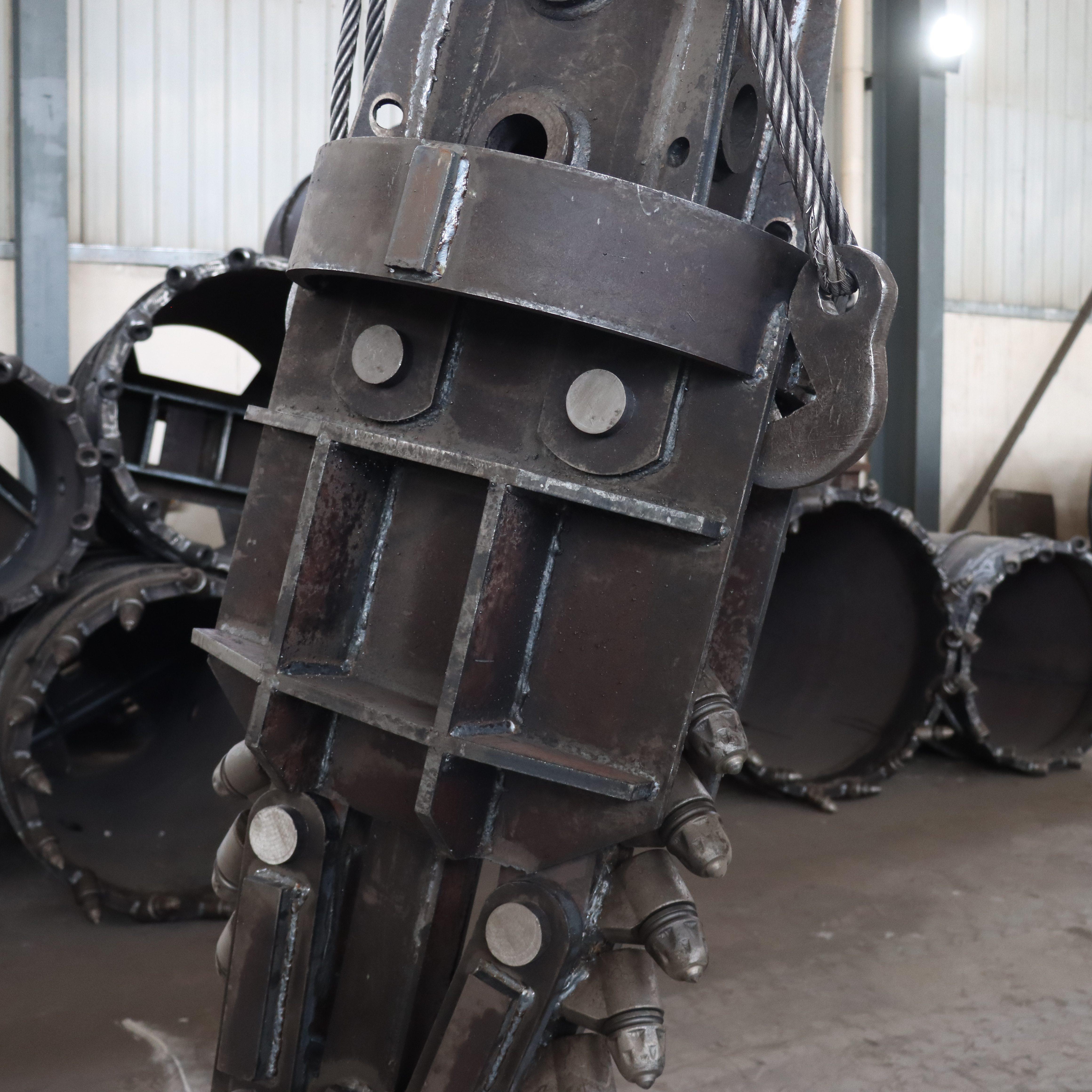

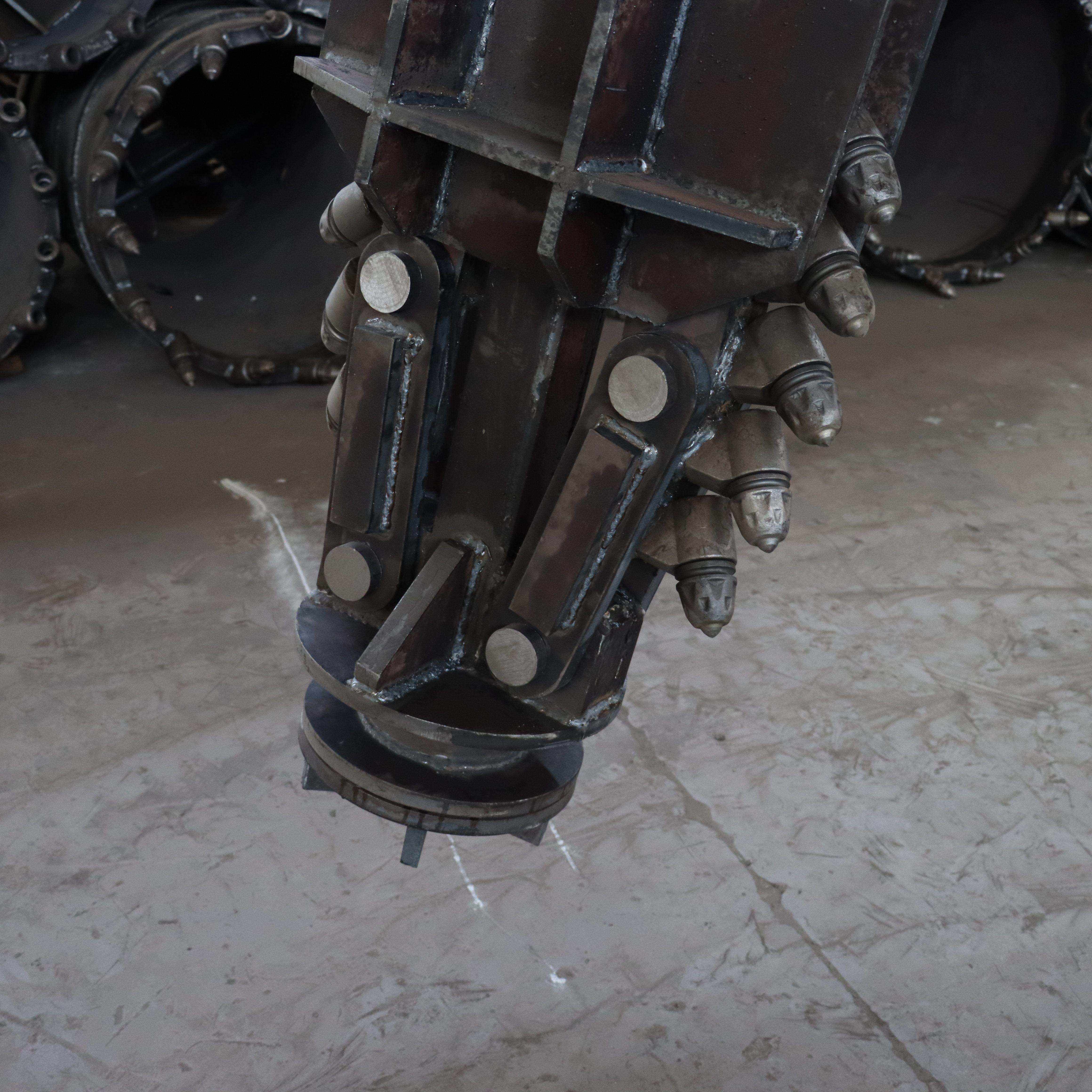

Durable thickened arm design, heat-treated for extra wear resistance. Belling Bucket.
Advantage:
The upper arm is thickened for durability
After heat treatment, it is more wear-resistant
|
model |
Swing no |
Thickness of each assembly |
Top plate thickness |
Teeth no |
Reaming multiples |
weight |
|
Φ400/800 |
2 |
No assembly parts |
20 |
6 |
1.5-2.0 |
400 |
|
Φ500/1000 |
2 |
No assembly parts |
20 |
6 |
1.5-2.0 |
580 |
|
Φ600/1200 |
2 |
16 |
20 |
10 |
1.5-2.0 |
615 |
|
Φ700/1400 |
2 |
20 |
20 |
12 |
1.5-2.0 |
750 |
|
Φ800/1600 |
2 |
20 |
30 |
14 |
1.5-2.0 |
1008 |
|
Φ1000/2000 |
2 |
20 |
30 |
18 |
1.5-2.0 |
1420 |
|
Φ1200/2400 |
2 |
20 |
30 |
20 |
1.5-2.0 |
1675 |
|
Φ1600/3200 |
2 |
20 |
30 |
26 |
1.5-2.0 |
3886 |
Remark: the length is in millimeters, and the weight is in kilograms. It can be customized as needed.
We supply drilling buckets, core barrels, drilling teeth, cone bits, casing systems, kelly bars, and tremie pipes for rotary drilling projects.
Selection depends on soil/rock type, hole diameter, and drilling depth. Our team can help you choose the right model.
Yes. Size, teeth type, shell height, and connection can be customized to match your drilling rig.
Yes. We offer casing tubes, casing shoes, adaptors, and related accessories as a complete system.
Send us your required product, specifications, rig model, and quantity via the inquiry form for a fast quote.
