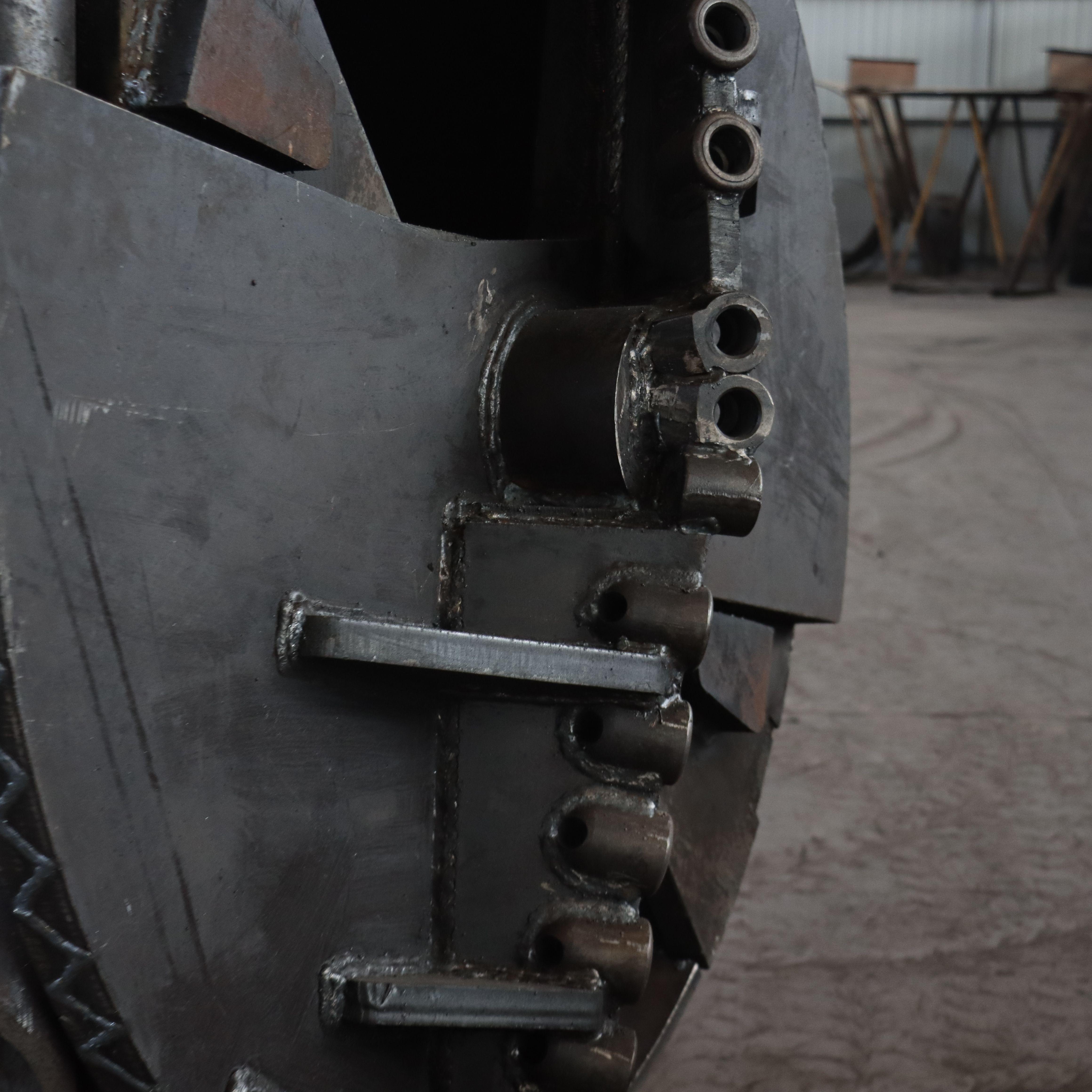

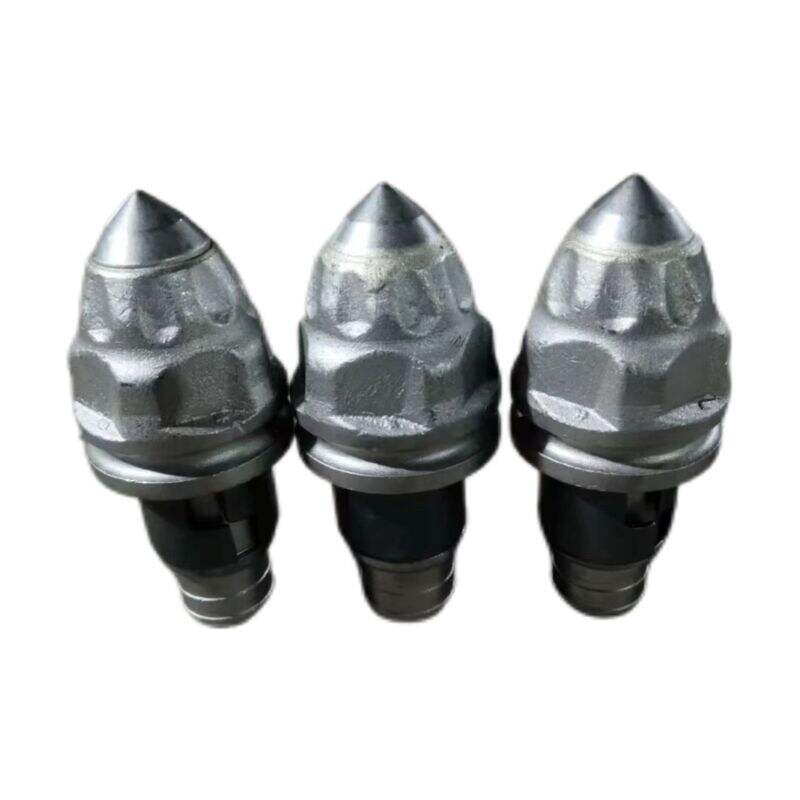

- angle of the teeth is 51-52°

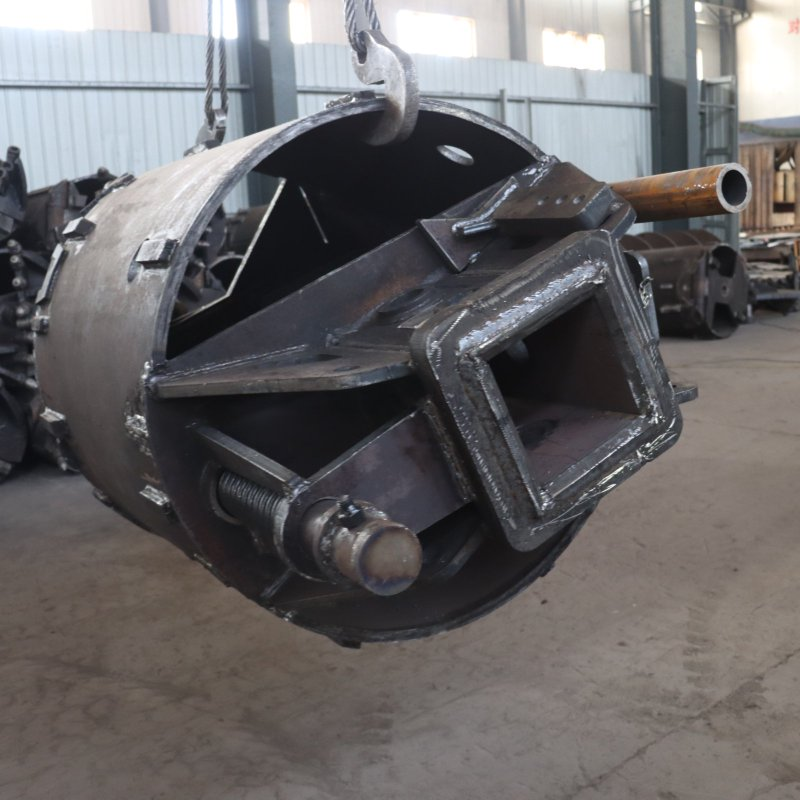

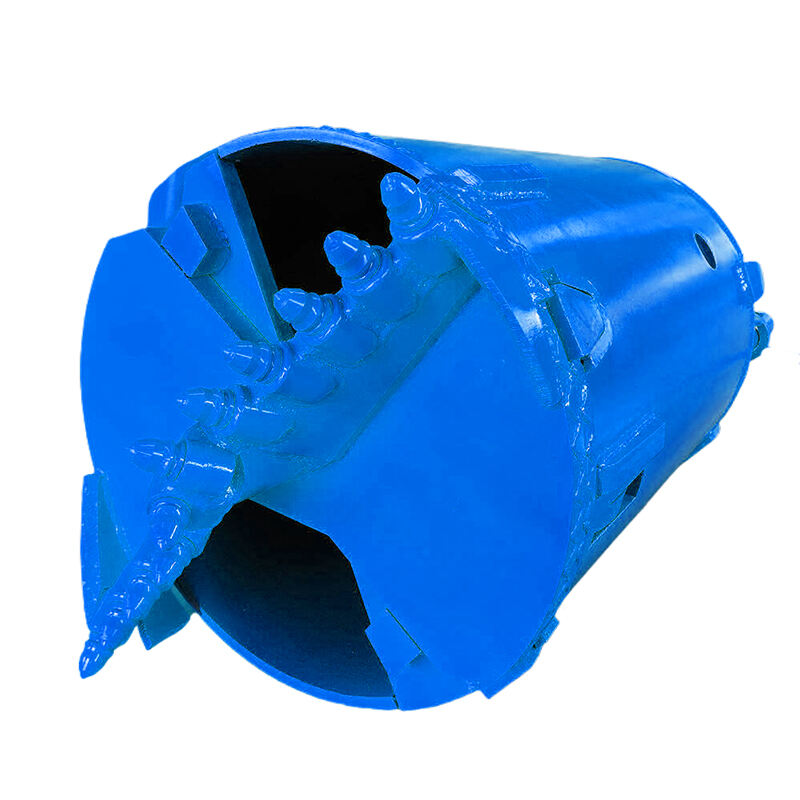

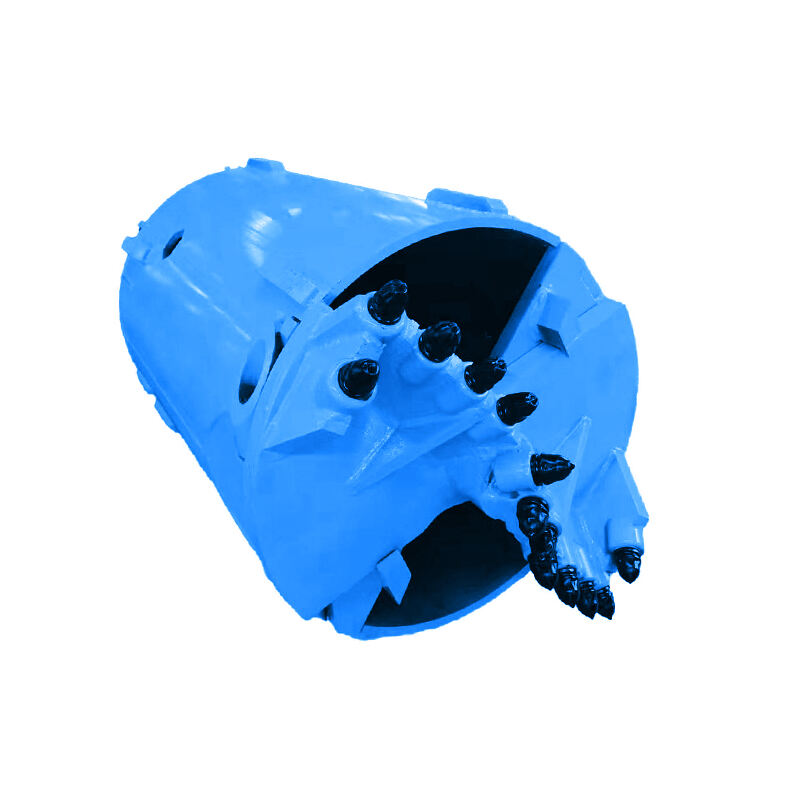

- conical bucket
- central axis was heat-treatment

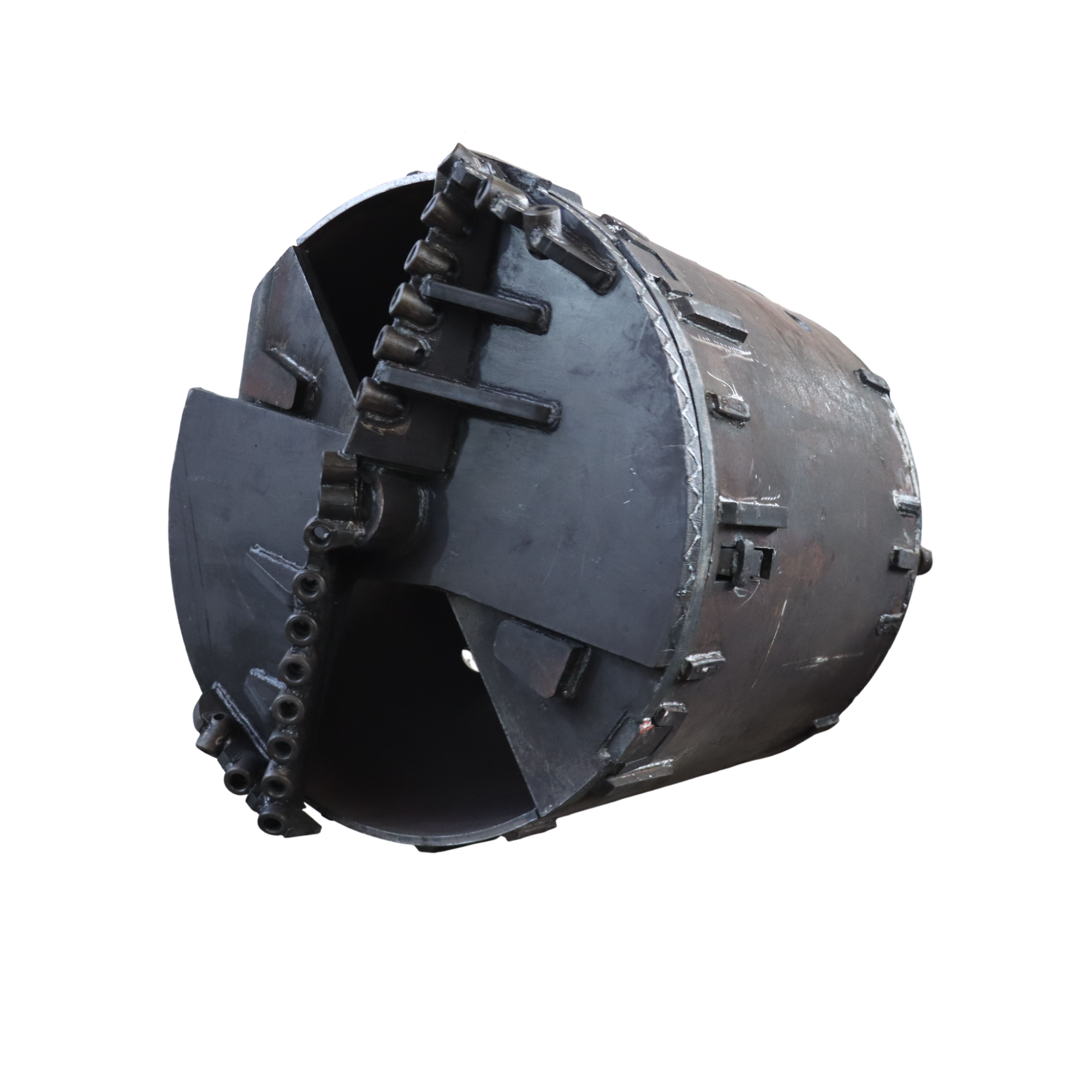

- abrasion-resistant bars on the cylinder
- The wear resistance of the wear-resistant strips is three times higher than that of ordinary wear-resistant strips
Product Description
Advantages:
The central axis was heat-treatment, and it is more thichker than others ,which has high toughness and wearable character,not easy to break.
There are abrasion-resistant bars on the cylinder, which can increase abrasion resistance and the service life.
The cylinder is equipped with wear-resistant strips forged from special materials of our factory, printed with the logo of Dazheng Yongye. Its wear resistance is three times higher than that of ordinary wear-resistant strips
All of the advantages can ensure the quailty of the bucket, improving your working efficiency and effects.
Product Specification
Model |
Height |
Thickness of Cylinder |
Thickness of inner bottom plate |
Thickness of lower bottom plate |
Teeth No. |
|
Φ600 |
1200 |
16 |
40 |
40 |
6 |
|
Φ700 |
1200 |
16 |
40 |
40 |
8 |
|
Φ800 |
1200 |
20 |
40 |
50 |
8 |
|
Φ900 |
1200 |
20 |
40 |
50 |
9 |
|
Φ1000 |
1200 |
20 |
40 |
50 |
10 |
|
Φ1200 |
1200 |
20 |
40 |
50 |
17 |
|
Φ1250 |
1200 |
20 |
40 |
50 |
17 |
|
Φ1400 |
1200 |
20 |
40 |
50 |
20 |
|
Φ1500 |
1200 |
20 |
40 |
50 |
20 |
|
Φ1600 |
1200 |
20 |
40 |
50 |
23 |
|
Φ1800 |
1000 |
20 |
40 |
50 |
24 |
|
Φ2000 |
800 |
20 |
40 |
50 |
26 |
|
Φ2200 |
800 |
20 |
40 |
50 |
27 |
|
Φ2400 |
800 |
20 |
50 |
50 |
30 |
|
Φ2500 |
800 |
20 |
40 |
50 |
32 |
|
Φ2600 |
800 |
20 |
50 |
50 |
33 |
|
Φ2800 |
800 |
20 |
50 |
50 |
35 |
|
Φ3000 |
800 |
20 |
50 |
50 |
37 |
|
Remark:the length is in millimeter | ||||||
|
